Basic Panel Meter

Our Digital Voltmeter, Ammeter, VAF, and other panel meters represent an innovative approach to advanced panel metering. They are designed for use in substations, distribution panels, genset panels, pumps, motors, compressors, individual equipment, control panels, test benches, and much more. Don’t settle for ordinary when you can have extraordinary accuracy and reliability. Upgrade your power monitoring game today with our innovative panel meters.

Product Brochure
Request Quotation
Basic Panel Meter - Voltmeter

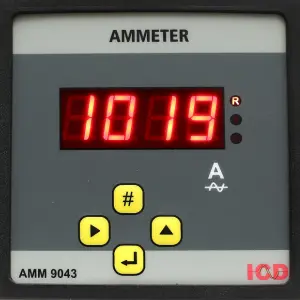

Basic Panel Meter - Ammeter
Basic Panel Meter - VAF Meter

Key Features:

  • Displays Line to Line, Phase to Neutral
  • Field Programmable PT Primary and Secondary values
  • True RMS Measurement
  • Poly Carbonate Enclosure
  • Auxiliary supply working from 90-270 VAC
  • Direct use on LT & HT installation
  • Better Resolution – 0.01kV (HT) and 1V (LT)
  • Panel Mounting

Technical Specification

  • Replaces Voltmeter, Ammeter and Frequency Indicator in an electricity panel
  • LT/HT Application
  • 12 Digit 0.39″ 7 segment red LED
  • Displays 12 parameters in a single instrument
  • Parameter displayed includes R,Y,B,RY,YB,BR Voltage, R, Y, B current and frequency
  • Accuracy: ± 1% on reading for voltage and current, ± 0.05% on reding for frequency
  • Resolution: Voltage 0.1V for LT, 0.01 KV for HT Current  0.1A up to 100A, 1A(more than 100A) Frequency(0.01HZ)
  • Voltage Input: 100-520V AC line to line for LT, 30-140V AC line to line for HT
  • Current Input: 5A/1A AC
  • PT/CT setting through keypad with password facility
  • Auxiliary supply: 90 to 270V AC/DC
  • Dimension: 96 x 96 x45 mm

Basic Meters - Selection Guide

Models
 Single Phase Three phase DC meter
V A Hz V A VAF V A
VLT 9051
AMA 9014
CNF 240
VLT 9053
AMM 9043
VAF 9000
VLT 9059
AMM 9049
